Data for this experiment has been collected been collected using LabStreamLayer, allowing for recording of precisely synchronized streams (see documentation).
LSL outputs single file in Extensible Data Format (XDF). This file contains all the data streams in form of a timeseries. In this script, we extract all the streams from the file and create raw (audio, video, and other) files for further processing.
Additionally, in this script, we - correct faulty delimitations of trials - align 16kHz LSL audio and external 48kHz audio that has been recorded outside of LSL, and cut this aligned audio to trial-sized files - combine video and audio into single file
More information about the complete lab setup can be found in our previous preregistration where we archived list of all equipment and software used in the experiment. It is available here at OSF Registries.
Code to prepare the environment
# import packagesimport osimport pyxdfimport globimport pandas as pdimport numpy as npimport wave, struct, randomfrom scipy.io import wavfileimport noisereduce as nrimport cv2import matplotlib.pyplot as pltfrom IPython.display import Audio, Videoimport tempfileimport subprocessimport ffmpeg# Set folderscurfolder = os.getcwd()# If folder data doesn't exist, create itifnot os.path.exists(curfolder+'\\data\\'): os.makedirs(curfolder+'\\data\\')datafolder = curfolder+'\\data\\'# Also error_logsifnot os.path.exists(datafolder+'\\error_logs\\'): os.makedirs(datafolder+'\\error_logs\\')errorlogs = datafolder+'\\error_logs\\'experiment_to_process = curfolder +'\\..\\00_RAWDATA\\'# Also CsvDataTS_rawifnot os.path.exists(datafolder+'\\Data_processed\\CsvDataTS_raw\\'): os.makedirs(datafolder+'\\Data_processed\\CsvDataTS_raw\\')outputfolder = datafolder+'\\Data_processed\\CsvDataTS_raw\\'# outputfolder raw# Audio inifnot os.path.exists(datafolder+'\\Data_processed\\CsvDataTS_raw\\Audio\\'): os.makedirs(datafolder+'\\Data_processed\\CsvDataTS_raw\\Audio\\')# Also Data_trialsifnot os.path.exists(datafolder+'\\Data_processed\\Data_trials\\'): os.makedirs(datafolder+'\\Data_processed\\Data_trials\\')trialfolder = datafolder+'\\Data_processed\\Data_trials\\'# outputfolder trialbased# Add audio inifnot os.path.exists(datafolder+'\\Data_processed\\Data_trials\\Audio\\'): os.makedirs(datafolder+'\\Data_processed\\Data_trials\\Audio\\')# Get all the folders in the target folderdatafolders = glob.glob(experiment_to_process+'*\\')# Extract the folder IDsdatafolders_id = [x.split('\\')[-2] for x in datafolders]# print(curfolder)# print(targetfolder)print(datafolders_id)# Identify all xdf files and all the associated triallist infoxdffiles = []trialdatas = []for i in datafolders_id:file= glob.glob(experiment_to_process+i+'\\*.xdf') trialfile = experiment_to_process+i+'\\'+i+'_results'+'.csv' trialdatas.append(trialfile) xdffiles.extend(file)# These are the xdf files we need to process#print(xdffiles[0:10])#print(trialdatas[0:10])
Extracting streams from XDF file
Using pyxdf package, we can extract the streams from the XDF file.
First, we extract streams for the whole recording session such that we end up with a file per each stream that represents the whole timeseries from the start to the end of the recording.
Then, we cut the whole streams into trial-sized chunks using the marker stream.Marker stream is saving presses from button box that has been administered by the experimentor. The presses indicates the start and end of each trial. We also collect the trial start and end time via the PsychoPy custom script that is used to run the experiment. We use this information to connect the marker to the trial metadata such as - what kind of concept is being performed - is this trial baselina, correction 1, correction 2 - who performs this trial - in which modality is this trial
(Note that this code takes some time to execute.)
Code with functions
# Audio write functiondef to_audio(fileloc, timeseries, samplerate =16000, channels =1): obj = wave.open(fileloc,'w') obj.setnchannels(channels) # mono obj.setsampwidth(2) obj.setframerate(float(samplerate))for i in timeseries: data = struct.pack('<h', int(i[0])) obj.writeframesraw( data ) obj.close()# Function to retrieve closest valuedef find_closest_value_and_retrieve(df, target_number, target_column, retrieve_column):# Get the absolute differences between a value in column and the target number differences =abs(df[target_column] - target_number)# Find the index of the minimum difference min_difference_index = differences.idxmin()# Retrieve the corresponding value from the column result_value = df.loc[min_difference_index, retrieve_column]return result_valuedef write_video(vidloc, fourcc, originalfps, frameWidth, frameHeight, capture, frames): out = cv2.VideoWriter(vidloc, fourcc, fps = originalfps, frameSize = (int(frameWidth), int(frameHeight)))#print('Looping over frames')# index the frames of the current trial for fra in frames: capture.set(cv2.CAP_PROP_POS_FRAMES, fra) ret, frame = capture.read()if ret: out.write(frame)ifnot ret:print('a frame was dropped: '+str(fra)) capture.release() out.release()
errorlist = []for dat in datafolders_id:print('Loading in data from participant: '+ dat) trialdata = pd.read_csv(experiment_to_process+dat+'\\'+dat+'_results.csv', sep=",")#print(trialdata)# Get the xdf file files = glob.glob(experiment_to_process+dat+'\\*.xdf') streams, header = pyxdf.load_xdf(files[0]) # We go through each stream and save it as a csvfor stream in streams: timeseriestype = stream['info']['name'][0]print(timeseriestype) samplerate =round(float(stream['info']['nominal_srate'][0]))# In the xdf loop over the streams and save it as csv if not yet exists channelcount = stream['info']['channel_count'][0]print('working on stream: '+ timeseriestype +' with a channel count of '+str(channelcount) +'\n and a sampling rate of '+str(samplerate)) timevec = stream['time_stamps'] timeseries = stream['time_series'] matrix_aux = np.vstack([np.transpose(timevec),np.transpose(timeseries)]) matrix = np.transpose(matrix_aux) df_lab = pd.DataFrame(matrix) df_lab.to_csv(outputfolder+dat+'_'+timeseriestype+'_nominal_srate'+str(samplerate)+'.csv',index=False)# For audio stream also create a wav fileif timeseriestype =='Mic': wavloc = outputfolder+'Audio/'+dat+'_'+timeseriestype+'_nominal_srate'+str(samplerate)+'.wav' to_audio(wavloc, timeseries)# Load data rate, data = wavfile.read(wavloc)# Perform noise reduction reduced_noise = nr.reduce_noise(y=data, sr=rate, n_std_thresh_stationary=1.5,stationary=True) wavloc2 = outputfolder+'Audio/'+dat+'_'+timeseriestype+'_nominal_srate'+str(samplerate)+'_denoised.wav' wavfile.write(wavloc2, rate, reduced_noise)print('done with processing a complete time series and audio data')print('we will now start making trial snipped data') # Load MyMarkerStream markers = pd.read_csv(outputfolder+dat+'_MyMarkerStream_nominal_srate0.csv')# Cut all timeseries to trial level based on the markersif timeseriestype !='MyMarkerStream': beginlist = [] endlist = [] timestamps = [] timestamps_2 = [] tpose_starts = [] tpose_ends = []# Iterate over markers and save times of trial starts and endsfor row in markers.iterrows():if'Trial_start'in row[1].iloc[1] or'Practice trial starts'in row[1].iloc[1]: beginlist.append(row[1].iloc[0])if'Trial_end'in row[1].iloc[1] or'Practice trial ends'in row[1].iloc[1]: endlist.append(row[1].iloc[0])if'Experiment_start'in row[1].iloc[1]: timestamps.append(row[1].iloc[0])if'New block starts'in row[1].iloc[1]: timestamps_2.append(row[1].iloc[0])if'Tpose starts'in row[1].iloc[1]: tpose_starts.append(row[1].iloc[0])if'Tpose ends'in row[1].iloc[1]: tpose_ends.append(row[1].iloc[0])# Converting coefficient for lsl to psychopy time exp_start_pp =float(trialdata['exp_start'][0]) block_start_pp =float(trialdata['block_start'][0])# Get to lsl_to_pp coefficientif timestamps != []: lsl_to_pp = timestamps[0] - exp_start_ppelse: lsl_to_pp = timestamps_2[0] - block_start_pp# Now we can proceed to cutting for i inrange(len(beginlist)):# Prepare the range of the trial begin = beginlist[i] end = endlist[i] indices = (df_lab.loc[:,0] > begin) & (df_lab.loc[:,0] < end) beginst =min(df_lab.loc[:,0]) # start time of the timeseries endst =max(df_lab.loc[:,0]) # end time of the timeseries subset = df_lab.loc[indices, :]# Convert the beginst to psychopy time beginst_pp = begin - lsl_to_pp# Now find in trialdata the closest time to the beginst_pp to gather info# Whether it is practice or trial practice = find_closest_value_and_retrieve(trialdata, beginst_pp, 'trial_start', 'practice')if practice =='practice': trialtype ='pr'else: trialtype ='trial'# Which participant it is cycle = find_closest_value_and_retrieve(trialdata, beginst_pp, 'trial_start', 'cycle')if cycle ==0: participant ='p0'else: participant ='p1'# What concept it is word = find_closest_value_and_retrieve(trialdata, beginst_pp, 'trial_start', 'word')# Modality modality = find_closest_value_and_retrieve(trialdata, beginst_pp, 'trial_start', 'modality')# Correction, if applicable correction_info = find_closest_value_and_retrieve(trialdata, beginst_pp, 'trial_start', 'correction')if correction_info ==0: correction ='_c0'elif correction_info ==1: correction ='_c1'elif correction_info ==2: correction ='_c2'else: correction =''# Continue savingif(len(subset.axes[0])<2): errorlist.append(dat +" for "+ timeseriestype +" for trial "+str(i) +'NO DATA WITHIN RANGE...')if(len(subset.axes[0])>2):# Save subset to csv subset.to_csv(trialfolder+dat+'_'+trialtype+'_'+str(i) +'_'+timeseriestype+'_nominal_srate'+str(samplerate)+'_'+participant+'_'+word+'_'+modality+correction+'.csv', index=False)if timeseriestype =='Mic': wavloc = trialfolder+'Audio/'+dat+'_'+trialtype+'_'+str(i) +'_'+timeseriestype+'_nominal_srate'+str(samplerate)+'_'+participant+'_'+word+'_'+modality+correction+'.wav' to_audio(wavloc, timeseries[indices])# Also apply denoising reduced_noiseclip = reduced_noise[indices] wavloc2 = trialfolder+'Audio/'+dat+'_'+trialtype+'_'+str(i) +'_'+timeseriestype+'_nominal_srate'+str(samplerate)+'_'+participant+'_'+word+'_'+modality+correction+'_denoised.wav' wavfile.write(wavloc2, rate, reduced_noiseclip)# Get information about the tpose for cameraif timeseriestype =='MyWebcamFrameStream':for i inrange(len(tpose_starts)): begin = tpose_starts[i] end = tpose_ends[i] indices = (df_lab.loc[:,0] > begin) & (df_lab.loc[:,0] < end) beginst =min(df_lab.loc[:,0]) endst =max(df_lab.loc[:,0]) subset = df_lab.loc[indices, :]# Save subset to csv subset.to_csv(trialfolder+dat+'_'+'tpose_'+str(i) +'_'+timeseriestype+'_nominal_srate'+str(samplerate)+'.csv', index=False)# After every stream we'll save the error log errors = pd.DataFrame(errorlist, columns=['file_error'])# Get todays date today = pd.Timestamp("today").strftime("%Y_%m") file_path = errorlogs+'error_log_cuttingtrails'+ today +'.csv' errors.to_csv(file_path, index=False) print('Were done: proceed to snipping videos to triallevel')
Now we have a csv file of a timeseries for each trial. The timeseries include - center of pressure (from the balance board stream) - video frame number - sound pressure (from the audio stream)
Here is an audio example of a trial:

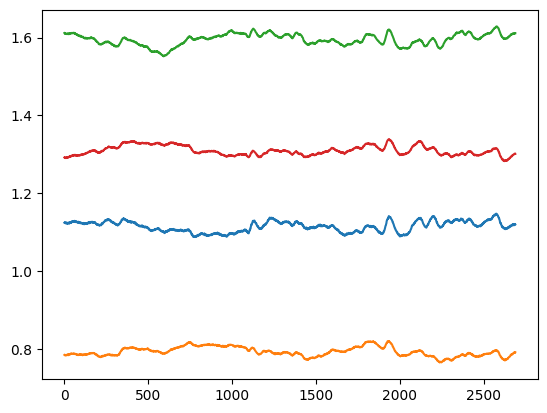

Here is a visualization of center of pressure (all four channels) for a trial:
Writing video files
Now we have almost all data in desirable form. However, we still need to write videos for each trial because currently, we have only the frame numbers saved for each trial.
We use these files to access the range of frames in the original raw video file for the whole session, and cut it out from it
You will notice that beside regular trial files, there is few files named ‘tpose’. This is a specific kind of trial that preceeds the whole experiment. Before they start, participants are asked to stand straight with their arms extended to the side (so to resemble a T-shape). We use this video later for scaling a computational biomechanical model (see OpenSim script).
Code to prepare folders
# This is a folder with timeseriestsfolder = datafolder+'\\Data_processed\\Data_trials\\'# Keep only the csv filestsfiles = glob.glob(tsfolder+'*.csv')# This is where the raw long video isvideofolder = curfolder +'\\..\\00_RAWDATA\\'
# Loop through the csv's in tsfolder that has string 'MyWebcamStream' in nameforfilein tsfiles:if'MyWebcamFrameStream'infile:print('Now processing file '+file) filename =file.split('\\')[-1].split('.')[0]# If it is a tpose file, the name looks a bit differentif'tpose'in filename: sessionIndex = filename.split('_')[0] +'_'+ filename.split('_')[1] videoname = sessionIndex+'_tpose_'+filename.split('_')[3]else:# The name looks like this 0_1_trial_0_MyWebcamFrameStream_nominal_srate500_p0_bitter_geluiden.csv dyadIndex = filename.split('_')[0] # this is dyad number partIndex = filename.split('_')[1] # this is part of the session sessionIndex = dyadIndex +'_'+ partIndex # this is the session index trialIndex = filename.split('_')[3] # this is trial number participant = filename.split('_')[7] # this is participant 0/1 word = filename.split('_')[8] # this is the concept modality = filename.split('_')[9].split('.')[0] # this is the modality# Assess the correctionif'c0'in filename: correction ='_c0'elif'c1'in filename: correction ='_c1'elif'c2'in filename: correction ='_c2'else: correction =''# Assess the trial typeif'pr'infile: trialtype ='pr'else: trialtype ='trial'# Get the filename videoname = sessionIndex+'_'+trialtype+'_'+str(trialIndex) +'_'+participant+'_'+word+'_'+modality+correction trialdata = pd.read_csv(file)#print(trialdata) videolong = videofolder+sessionIndex+'\\'+sessionIndex+'-video.avi'# this is the long video begin_time = trialdata['0'].min() # begin time of the trial end_time = trialdata['0'].max() # end time of the trial# Get the begin and end frame begin_frame = trialdata['1'].min().astype(int) end_frame = trialdata['1'].max().astype(int) totframes = end_frame-begin_frame # total number of frames in the trial frames =range(begin_frame, end_frame) # get all the frames in trial#print(frames)# Load in the long video capture = cv2.VideoCapture(videolong) originalfps =round((totframes/(end_time-begin_time)),3) # original fps# This is the location where the video will be saved vidloc = trialfolder+videoname+'_video_raw'+'.avi'# Metadata fourcc = cv2.VideoWriter_fourcc(*'XVID') frameWidth = capture.get(cv2.CAP_PROP_FRAME_WIDTH) frameHeight = capture.get(cv2.CAP_PROP_FRAME_HEIGHT)# Start writing videoprint('Starting to write the video') write_video(vidloc, fourcc, originalfps, frameWidth, frameHeight, capture, frames)print('Video is done')print('All done!')
Now we have for each trial also a video.
Here is an example:
This is how T-pose looks like:
Correcting some trials
As mentioned, trials are meant to be delimited by button box markers that are triggered by presses from experimentor. However, due to occasional errors (e.g., participants forgot to signal start of the trial), we need to visually inspect all trials, and correct the ones that are not properly delimited.
For each session, we create a separate csv file where we note the correct beginning and end frame (as shown in the video itself) of the wrongly delimited trials. Then we cut these new frames from the long video - similarly as we did for the regular trials. Lastly, to make sure that other timeseries are also corrected in order to be correctly synchronize, we assess the LSL time of the new frames and cut the corresponding audio and balance board data.
Code with functions
# audio write functiondef to_audio(fileloc, timeseries, samplerate =16000, channels =1): obj = wave.open(fileloc,'w') obj.setnchannels(channels) # mono obj.setsampwidth(2) obj.setframerate(float(samplerate))for i in timeseries: data = struct.pack('<h', int(i)) obj.writeframesraw( data ) obj.close()def correct_file(i, begin, end, errorlog, ts, stream):# get the start and end of the corrected range of frames# begin = error['frame_begin'][i]# end = error['frame_end'][i]if stream =='video': indexcol =1else: indexcol =0# cut from the ts everything that is below start and above end indices = (ts.iloc[:,indexcol] > begin) & (ts.iloc[:,indexcol] < end)#beginst = min(ts.iloc[:,1]) #start time of the timeseries#endst = max(ts.iloc[:,1]) #end time of the timeseries subset = ts.loc[indices, :]# save also the time of the first and last frame as new variablesif stream =='video': errorlog.loc[i, 'begin_time'] = subset.iloc[0,1] errorlog.loc[i, 'end_time'] = subset.iloc[len(subset)-1,1]#print(errorlog['end_time'][i])# save the new timeseries using the path of the video column with _corrected as appended file_name = errorlog.loc[i, stream]# replace .csv by _corrected.csv file_name = file_name.replace('.csv', '_corrected.csv')return errorlog, file_name, subset
Code to prepare environment
datafolder = curfolder +'/data/Data_processed/Data_trials/'errorfolder = datafolder +'Handlock_error/'# here we store all the corrected frame rangestimeseries = curfolder +'/data/Data_processed/CsvDataTS_raw/'errorfiles = glob.glob(errorfolder+'*.csv')
This is how the error file looks like:
word
part
correction
frame_begin
frame_end
0
dansen
1
NaN
19400
19541
1
langzaam
1
NaN
45729
46055
2
auto
1
NaN
46575
46895
3
snel
1
NaN
63206
63597
4
bitter
1
NaN
22160
22327
5
walgen
1
NaN
26725
26897
Code to correct some faulty trials
forfilein errorfiles:# load the df error = pd.read_csv(file) session =file.split('\\')[-1].split('_')[0]# make new columns audio, video and bb error['audio'] ='' error['video'] ='' error['bb'] =''# now let's find corresponding wrong files in audio and video audio = datafolder +'Audio/' csv = glob.glob(datafolder +'*.csv')# loop over the error wordsfor i inrange(len(error)):# get the word word = error['word'][i]# get the part part = error['part'][i]# if the correction is not NaN, get it and transform to integerif pd.isna(error['correction'][i]) ==False: correction =int(error['correction'][i])# if correction is 0, it is c0if correction ==0: correction ='c0'elif correction ==1: correction ='c1'else: correction ='c2' part ='2' sessionID = session +'_'+ partelse: correction ='' part ='1' sessionID = session +'_'+ part# loop over the csv filesfor j inrange(len(csv)):# if the word is in the csv fileif word in csv[j] and sessionID in csv[j] and correction in csv[j]:# get the corresponding csv file csv_file = csv[j]# if the file has Mic in it, save its name to column audioif'Mic'in csv_file: error.loc[i, 'audio'] = csv_file# if the file has Webcam in it, save its name to column videoelif'Webcam'in csv_file: error.loc[i, 'video'] = csv_file# if BalanceBoard in it, save its name to column bbelif'BalanceBoard'in csv_file: error.loc[i, 'bb'] = csv_file# create begin_time and end_time columns error['begin_time'] =0.0 error['end_time'] =0.0########################## re-cutting csv files ############################### now we will get to each timeseries, and correct the frame/time range csv_ts = glob.glob(timeseries +'*.csv') webcam_ts = [x for x in csv_ts if'Webcam'in x] mic_ts = [x for x in csv_ts if'Mic_nominal'in x] bb_ts = [x for x in csv_ts if'BalanceBoard'in x]# loop over the error wordsfor i inrange(len(error)):print(error['word'][i])# if the session is 0_1 load 0_1_MyWebcamFrameStreamif error['part'][i] ==1: sessionID = session +'_1' webcam_ts = timeseries + sessionID +'_MyWebcamFrameStream_nominal_srate500.csv' ts_w = pd.read_csv(webcam_ts) mic_ts = timeseries + sessionID +'_Mic_nominal_srate16000.csv' ts_m = pd.read_csv(mic_ts) bb_ts = timeseries + sessionID +'_BalanceBoard_stream_nominal_srate500.csv' ts_bb = pd.read_csv(bb_ts)elif error['part'][i] ==2: sessionID = session +'_2' webcam_ts = timeseries + session +'_2_MyWebcamFrameStream_nominal_srate500.csv' ts_w = pd.read_csv(webcam_ts) mic_ts = timeseries + sessionID +'_Mic_nominal_srate16000.csv' ts_m = pd.read_csv(mic_ts) bb_ts = timeseries + sessionID +'_BalanceBoard_stream_nominal_srate500.csv' ts_bb = pd.read_csv(bb_ts)# get the start and end of the corrected range of frames begin = error['frame_begin'][i] end = error['frame_end'][i]# video correction begin = error['frame_begin'][i] end = error['frame_end'][i] error, file_name, subset = correct_file(i, begin, end, error, ts_w, 'video')iflen(subset) ==0:print('This file is empty: '+ error['video'][i])else:# save also the begin_time and end_time error.loc[i, 'begin_time'] = subset.iloc[0,0] error.loc[i, 'end_time'] = subset.iloc[len(subset)-1,0] subset.to_csv(file_name, index =False) # audio correction begin_time = error.loc[i, 'begin_time'] end_time = error.loc[i, 'end_time'] error, filename, subset = correct_file(i, begin_time, end_time, error, ts_m, 'audio')iflen(subset) ==0:print('This file is empty: '+ error['audio'][i])else: subset.to_csv(filename, index =False)# balanceboard correction error, filename, subset = correct_file(i, begin_time, end_time, error, ts_bb, 'bb')iflen(subset) ==0:print('This file is empty: '+ error['bb'][i])else: subset.to_csv(filename, index =False)################### rewriting audio and video ############################# get all the csv files with _corrected in it correct = glob.glob(datafolder +'*_corrected.csv') audio = datafolder +'Audio/'# loop over them for i inrange(len(correct)):print(correct[i]) sessionID = correct[i].split('\\')[-1].split('_')[0] +'_'+ correct[i].split('\\')[-1].split('_')[1]# if it has Mic in it, create an audioif'Mic'in correct[i]: file_name = correct[i]# take only the last part of the path file_name = file_name.split('\\')[-1]# replace _corrected.csv by .wav file_name = file_name.replace('.csv', '.wav') print(file_name) wavloc = audio+file_name ts = pd.read_csv(correct[i])# make second column into a list sound = ts.iloc[:,1].tolist() to_audio(wavloc, sound)# load data rate, data = wavfile.read(wavloc)# perform noise reduction reduced_noise = nr.reduce_noise(y=data, sr=rate, n_std_thresh_stationary=1.5,stationary=True) file_name2 = file_name.replace('.wav', '_denoised.wav') wavloc2 = audio + file_name2 wavfile.write(wavloc2, rate, reduced_noise)# if it has webcam in it, create a videoelif'Webcam'in correct[i]:print('This is a video') ts = pd.read_csv(correct[i]) videolong = experiment_to_process+'\\'+ sessionID +'\\'+ sessionID +'-video.avi'print(videolong) begin_time = ts['0'].min() # begin time of the trial end_time = ts['0'].max() # end time of the trial# get the begin and end frame begin_frame = ts['1'].min().astype(int) end_frame = ts['1'].max().astype(int) totframes = end_frame-begin_frame # total number of frames in the trial frames =range(begin_frame, end_frame) #get all the frames in trial#load in the long videoprint('Loading the original video') capture = cv2.VideoCapture(videolong) originalfps =round((totframes/(end_time-begin_time)),3)print('original fps: '+str(originalfps))# filename filename = correct[i].split('\\')[-1]# replace MyWebcamFrameStream_nominal_srate500_ with '' filename = filename.replace('MyWebcamFrameStream_nominal_srate500_', '')# replace csv. with '' filename = filename.replace('.csv', '')# this is the location where the video will be saved vidloc = datafolder + filename +'_video_raw'+'.avi'# video metadata fourcc = cv2.VideoWriter_fourcc(*'XVID') frameWidth = capture.get(cv2.CAP_PROP_FRAME_WIDTH) frameHeight = capture.get(cv2.CAP_PROP_FRAME_HEIGHT)# start writing videoprint('Starting to write the video') write_video(vidloc, fourcc, originalfps, frameWidth, frameHeight, capture, frames)else:print('BB do not need any processing')print('All streams have been corrected')
Now we have all the data streams (i.e., audio, video, balance board) as single csv file per trial wherein each trial correctly starts with the beginning of the performance and capture the whole behaviour until the end of the performance.
Additionally, we also have wav file for each trial and a video file for each trial.
Aligning high-sampling audio and cutting it to trial-sized files
Alongside the 16kHz audio stream that is recorded within LSL, we have also recorded additional 48kHz audio from the same source (see method preregistration).
However, this audio is not natively synchronized with the rest of the data. However, because both audios come from the same source and record the same event, we can align them using cross-correlation.
Code to load packages and prepare the environment
from __future__ import print_functionfrom shign import shift_alignimport numpy as npimport waveimport soundfile as sfimport noisereduce as nrfrom scipy.io import wavfileaudio_48 = experiment_to_processaudio_48_files = glob.glob(audio_48 +'**/*.wav', recursive=True)audio_16 = curfolder +'\\data\\Data_processed\\CsvDataTS_raw\\Audio\\'audio_16_files = glob.glob(audio_16 +'*denoised.wav')
We will use shign package (see Github) that defines time shift of the two audios by looking at the amount of shift that maximizes the correlation between loudness envelopes of the audios.
Before aligning the audios, we first denoise the 48kHz audio and downsample it to 16kHz to match the LSL audio. Then we use the shift_aling function from the shign package to align the audios.
for file48 in audio_48_files:print('working on'+ file48)# get session ID sessionID = file48.split('\\')[-1].split('.')[0].split('_')[0] +'_'+ file48.split('\\')[-1].split('.')[0].split('_')[1]# find the corresponding 16kHz file file16 = [x for x in audio_16_files if sessionID in x][0]print('corresponding file:'+ file16)# first we reduce noise in the 48kHz file rate, data = wavfile.read(file48) reduced_noise = nr.reduce_noise(y=data, sr=rate, n_std_thresh_stationary=1.5,stationary=True)## replace .wav by _denoised.wav wavloc2 = file48.replace('.wav', '_denoised.wav') wavfile.write(wavloc2, rate, reduced_noise)# now open the new denoised file file48_newpath = wavloc2 audio48_new = wave.open(file48_newpath, 'rb') audio16 = wave.open(file16, 'rb')# get both audio files audio_data1 = np.frombuffer(audio16.readframes(-1), dtype=np.int16) sample_rate1 = audio16.getframerate() audio_data2 = np.frombuffer(audio48_new.readframes(-1), dtype=np.int16) sample_rate2 = audio48_new.getframerate()print(sample_rate1, sample_rate2) my_aligned_audio1, my_aligned_audio2 = shift_align(audio_a=file16, audio_b=file48_newpath, sr_a=16000, sr_b=48000, align_how='pad_and_crop_one_to_match_other')# save the output wav2_path = file48_newpath.replace('.wav', '_aligned.wav') sf.write(wav2_path, my_aligned_audio2, 48000)
Code with functions
def find_closest_rows(df, target_number):# Calculate the absolute difference between each value in the 'trial_start' column and the target number df['abs_difference'] =abs(df.iloc[:, 0] - target_number)# Find the row with the smallest absolute difference for each row closest_rows = df[df['abs_difference'] == df['abs_difference'].min()]return closest_rows
Now we have 48kHz audio that is aligned with the rest of the data collected via LSL. In order to be able to use this audio in further processing, we too cut it to trial-sized files.
Because both audio streams have stable sampling rate, we can simply use the trial-sized files of the 16Khz audio, find their indices in the whole-session timeseries we created earlier, apply a conversion coefficient to the indices delimiting this trial to get the indices for the 48kHz audio, and cut the 48kHz audio accordingly.
The conversion coeeficient is sr2/sr1, where sr1 is the sampling rate of the 16kHz audio and sr2 is the sampling rate of the 48kHz audio. In our case sr1=16000 and sr2=48000, so the conversion coefficient is 3.
# setup foldersaudio_48_files = glob.glob(experiment_to_process +'**/*aligned.wav', recursive=True)ts_audio = curfolder +'\\data\\Data_processed\\CsvDataTS_raw\\'# get the whole-session audio timeseriescsvfiles = glob.glob(ts_audio +'*.csv')ts_audio_files = [x for x in csvfiles if'Mic'in x] # keep only those that have Mic# get trial-sized audio timeseriestrials = curfolder +'\\data\\Data_processed\\Data_trials\\'csvfiles = glob.glob(trials +'*.csv')ts_audio_trials = [x for x in csvfiles if'Mic'in x] # keep only those that have Mic# here we will store the new audioaudio_trials_48 = curfolder+'\\data\\Data_processed\\Data_trials\\Audio_48'# this is our coefficientconvert =3# 48000/16000forfilein ts_audio_files:print('working on'+file)# get session ID sessionID =file.split('\\')[-1].split('.')[0].split('_')[0] +'_'+file.split('\\')[-1].split('.')[0].split('_')[1]# find the corresponding 48kHz file file48 = [x for x in audio_48_files if sessionID in x][0]print('corresponding file: '+ file48)# open audio audio48 = wave.open(file48, 'rb') data48 = np.frombuffer(audio48.readframes(-1), dtype=np.int16)# open the csv file ts_audio = pd.read_csv(file)# now get all files that are in ts_audio_files and have same sessionID audiotrials = [x for x in ts_audio_trials if sessionID in x]for trial in audiotrials:print('working on trial: '+ trial)# open the csv file df = pd.read_csv(trial)# first and last value start = df.iloc[0, 0] end = df.iloc[len(df)-1, 0]# find the closest row in ts_audio closest_row_start = find_closest_rows(ts_audio, start) start_index = closest_row_start.index[0] closest_row_end = find_closest_rows(ts_audio, end) end_index = closest_row_end.index[0]# convert start_index_2 = start_index*convert end_index_2 = end_index*convertprint('new indices ', start_index_2, end_index_2)# cut the data48 data2_trial = data48[int(start_index_2):int(end_index_2)] filename_new = trial.split('\\')[-1].split('.')[0]# replace 16000 with 48000 filename_new = filename_new.replace('16000', '48000') file_path = audio_trials_48 +'\\'+ filename_new +'.csv'# save the csv to audio_48 df = pd.DataFrame(data2_trial) df.to_csv(file_path, index=False)# now to audio wavloc = audio_trials_48 +'\\'+ filename_new +'.wav' to_audio(wavloc, data2_trial, samplerate =48000)
This is an example of the newly cut 48kHz audio
Concatenating audio and video
We do not necessarilly need to have video and audio combined, but we do want to check whether they are synchronized. They should be if LSL is working correctly, but it’s always good to do a sanity check as LSL can be sensitive to CPU-overload and other issues.
We will combine the audio and video for each trial using ffmpeg package, and save it as a new video file.
# loop over Audio filesforfilein wavfiles:print('Now processing file '+file) filename =file.split('\\')[-1].split('.')[0] dyadIndex = filename.split('_')[0] # this is dyad number partIndex = filename.split('_')[1] # this is part of the session sessionIndex = dyadIndex +'_'+ partIndex # this is the session indexprint(sessionIndex) trialIndex = filename.split('_')[3] # this is trial number participant = filename.split('_')[7] # this is participant 0/1 word = filename.split('_')[8] # this is the word modality = filename.split('_')[9] # this is the modality# handle correctionif'c0'infile: correction ='_c0'elif'c1'infile: correction ='_c1'elif'c2'infile: correction ='_c2'else: correction =''# trial typeif'_pr_'infile: trialtype ='pr'else: trialtype ='trial'# if it's corrected file or notif'corrected'infile: add ='_corrected'else: add =''#load in the audioprint('Loading the audio') audio_path = os.path.join(wavloc, file)ifnot os.path.exists(audio_path):print(f"Audio file not found: {audio_path}")# input the video with ffmpg input_audio = ffmpeg.input(audio_path)print(input_audio)#load in the video with matchich trialIndex and SessionIndexprint('Loading the video') video_path = os.path.join(videofolder +f"{sessionIndex}_{trialtype}_{trialIndex}_{participant}_{word}_{modality}{add}{correction}_video_raw.avi")ifnot os.path.exists(video_path):print(f"Video file not found: {video_path}") input_video = ffmpeg.input(video_path)print(input_video)#combine the audio and videoprint('Combining audio and video') output_path = os.path.abspath(os.path.join(audiovideo, f"{sessionIndex}_{trialtype}_{trialIndex}_{participant}_{word}_{modality}{correction}_final.avi")) ffmpeg.concat(input_video, input_audio, v=1, a=1).output( output_path, vcodec='libx264', acodec='aac', video_bitrate='2M', ).run(overwrite_output=True)print('All done!')
Here is an example of the combined audio and video for a trial
Now we are ready to further process audio and video data.
